Aecero

AECERO CRITICAL BUSINESS EXCHANGE (CBX)

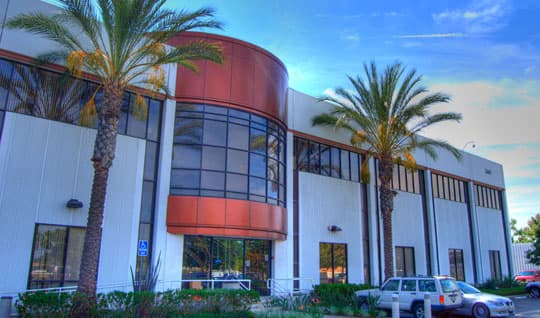

The Aecero CBX is located in Anaheim, California, with flexible infrastructure to meet changing mission-critical business needs.

GENERAL DATA CENTER INFORMATION
- Tier 4 facility with 6 Megawatts of capacity
- Carrier Neutral with Fiber from more than 14 carriers
- 110,000 sq. ft.
- Advanced seismic reinforcement

ELECTRICAL
- True 2N Electrical Infrastructure with 6 Megawatts of capacity
- Five 12kV transformers feeding redundant electrical buses
- Electrical buses feature automatic transfer switches connected to emergency generators, in the event of a utility failure
- Electrical buses feed two parallel Powerware Uninterruptible Power Supplies (UPSs), protected by an automatic static transfer switch in the event of failure or overloading
- Power Distribution Units (PDUs) feature a Cyberex automatic digital static transfer switch fed by two redundant and independent electrical buses
- Customer power strips may be connected to redundant PDUs for complete Tier 4 electrical redundancy
- Comprehensive grounding system with connections available for all posts, cages, and cabinets

COMMERCIAL POWER
- Non-profit Anaheim Public Utilities as power provider
- Anaheim Public Utilities is winner of multiple Reliable Public Power Provider
(RP3) Awards and power provider for Disneyland

EMERGENCY POWER
- Four Caterpillar 2,500kVA generators supply emergency power
- 16,000 gallon underground fuel reservoir provides minimum 48 hour run time at full facility capacity and indefinite run time with refueling
- 2,000kW load bank on-site for testing generators and UPSs at full critical load

CONNECTIVITY
- Site is home to major switch sites (>40,000 sq. ft.) for Global Crossing and Level(3)
- Site is also home to major sites for smaller carriers, including Windstream, Time Warner Telecom, and Cogent
- Lit fiber from AT&T, City of Anaheim, Cogent, Cox, Global Crossing, Level 3, Edison Carrier Solutions, TelePacific, Time Warner Cable, TW Telecom, Verizon, Wilcon, Windstream, XO and Zayo

FIRE SUPPRESSION
- FM-200 Clean Agent Fire Suppressant
- VESDA (Very Early Smoke Detection Apparatus)
- Double-Interlock Preaction Sprinkler System

ENVIRONMENTAL
- Raised floor cooling
- Liebert Computer Room Air Conditioning (CRAC) units within all colocation suites and electrical rooms
- N+1 EvapCo Stainless Cooling Towers with advanced seismic reinforcement
- Closed loop condensate cooling system to provide greater reliability and decreased maintenance
- 24,000 gallon underground makeup water reservoir for emergency cooling, in the event of utility water supply interruption
- Water leak detection system on all fluid filled lines within colocation suites and electrical rooms

SECURITY
- Ballistic-proof security station guarding facility entrance
- 24-hour on-site security team monitors all cameras, door positions, and badge access areas
- Cameras digitally record all movement within and outside the facility, covering every door, aisle, cage, and cabinet, and other secure support rooms
- Proximity card combined with biometric hand scanner verifies unique hand geometry image before allowing entry to colocation suites
